⚙️ Key Features

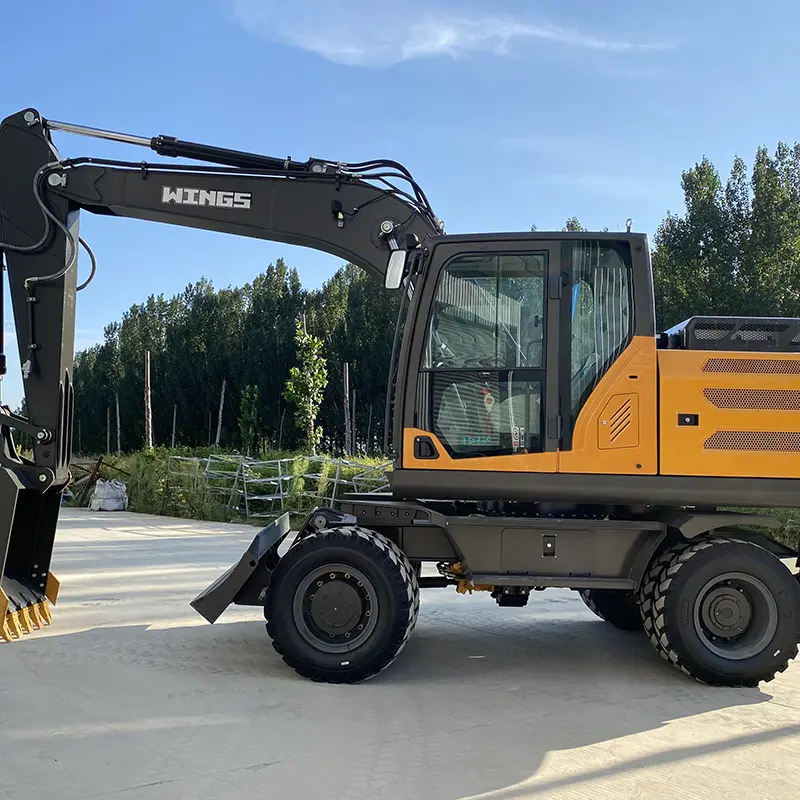

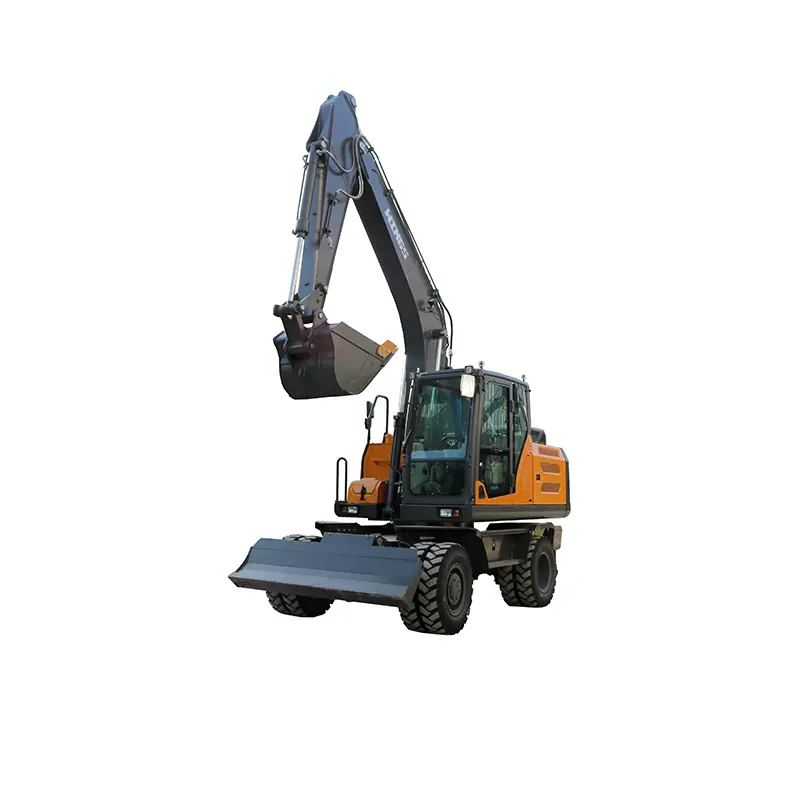

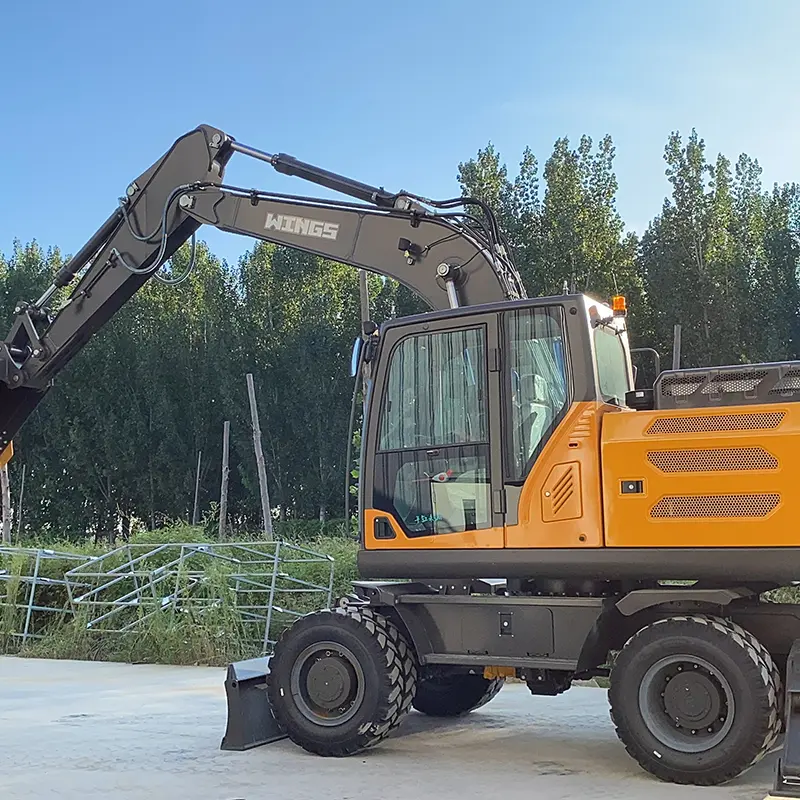

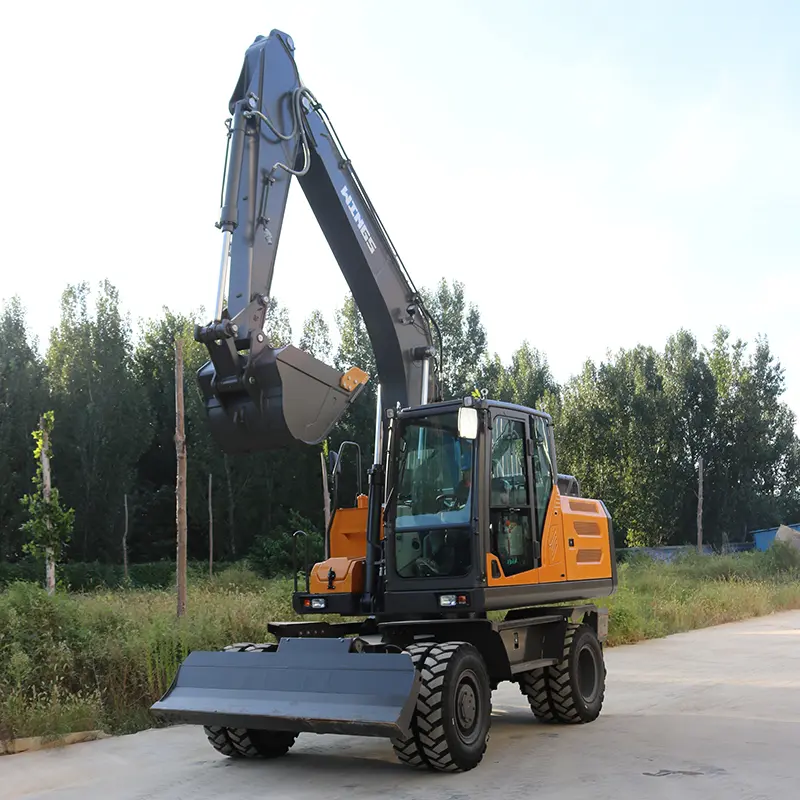

Model: Wheeled Excavator-WH150
Operating Weight: 15,200kg
Engine: Cummins diesel engine (133kW)
Product Type: Heavy-duty model with enclosed cab
◈
Fast Mobility: The WH150 wheeled excavator moves quickly between sites, reducing downtime and boosting efficiency.
◈
Versatile Performance: Powered by a Cummins 133kW engine with high-low speed functionality and hydraulic pilot controls, it delivers excellent performance on any task or terrain.
🏗️ Applications
✔
Urban Construction Projects: Perfect for city construction requiring frequent relocation and precise operation in confined spaces.
✔
Road Maintenance and Repairs: Ideal for tasks such as ditching, grading, and material handling along roadsides.
✔
Small to Medium Earthmoving Jobs: Suitable for excavation, backfilling, and material transport in construction or agricultural fields.
📊 Main Parameters
| Technical Specifications - WH150 |
| Performance |
Bucket Capacity |
m3 |
0.6 |
| Total Weight |
kg |
15200 |
| Swing Speed |
rmp |
0-12 |
| Gradeability |
° |
25 |
| Max. Bucket Digging Force |
KN |
91 |
| Max. Arm Digging Force |
KN |
55 |
| Engine Model |
- |
Cummins 6BTAA5.9 |
| Power / Speed |
KW/rmp |
133 |
| Tire Model |
- |
9.00-20 |
| System Pressure |
MPa |
32 |
| Dimensions |
L * W * H |
mm |
6770 x 2550 x 3370 |
| Axle Base |
mm |
2600 |
| Tail Swing Radius |
mm |
2420 |
| Working Range |
Max. Digging Height |
mm |
8930 |
| Max. Digging Depth |
mm |
5180 |
| Max. Digging Radius |
mm |
8200 |
| Max. Vertical Digging Depth |
mm |
4745 |
🌟 Why Choose This Model?
★
Proven Expertise: High-quality, durable, and innovative equipment designed for the heavy construction industry.
★
Customer Focus: Tailored solutions and high commitment to meeting specific project requirements.
★
Commitment to Excellence: Advanced technologies and strict quality control for top-tier performance, efficiency, and safety.
The WH150 rubber-tired excavator is engineered to exceed expectations across diverse project requirements. Ideal for urban development and road maintenance, these excavators offer 35% faster job completion rates through optimized hydraulic systems.
Frequently Asked Questions (FAQ)
Q1: What is the operating weight of the WH150 Wheeled Excavator?
A: The WH150 has a total operating weight of 15,200kg, making it a robust choice for heavy-duty earthmoving tasks.
Q2: Which engine powers the WH150 model?
A: It is powered by a high-performance Cummins 6BTAA5.9 diesel engine, delivering 133kW of power.
Q3: What is the maximum digging depth of this excavator?
A: The WH150 can reach a maximum digging depth of 5,180mm and a maximum digging height of 8,930mm.
Q4: Is this model suitable for urban construction?
A: Yes, its wheeled design allows for fast mobility between sites and is perfect for city projects that require frequent relocation and precise handling.
Q5: What is the bucket capacity for the WH150?
A: The standard bucket capacity for this model is 0.6 cubic meters (m3).
Q6: What type of tires does the WH150 use?
A: The machine is equipped with 9.00-20 model rubber tires, providing excellent stability and movement on various terrains.
