Buy Compact Rough Terrain Forklift with 3.5T Load Capacity Manufacturer, Manufacturers

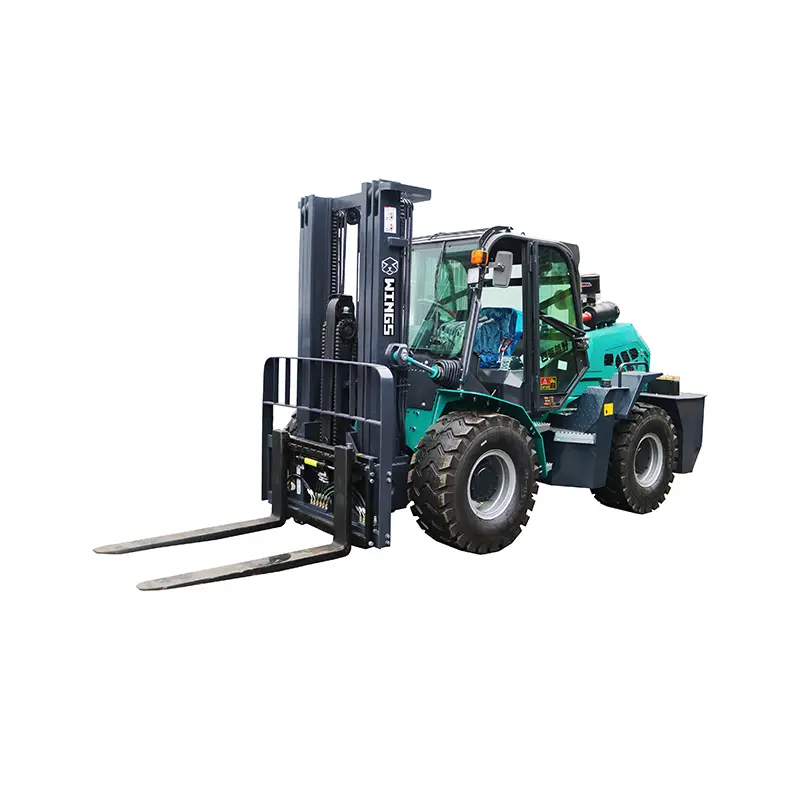

WINGSÂ KDJY35 is a powerful Small Off Road Forklift designed for tough terrains. Featuring four-wheel drive for enhanced power, an articulated frame for agile steering, and a robust 3.5T load capacity, it ensures superior performance and maneuverability in challenging environments.

Send Inquiry

Product Description

Key Features

Model: Articulated Off-road Forklift-KDJY35
Product type: Front/Middle/Back position articulated type
Load Capacity: 3,500kg
Engine: Quanchai 490, Turbocharged Engine
Powerful 4WD System: Robust four-wheel drive for enhanced traction and stability
Articulated Design: Superior maneuverability in tight spaces and improved handling

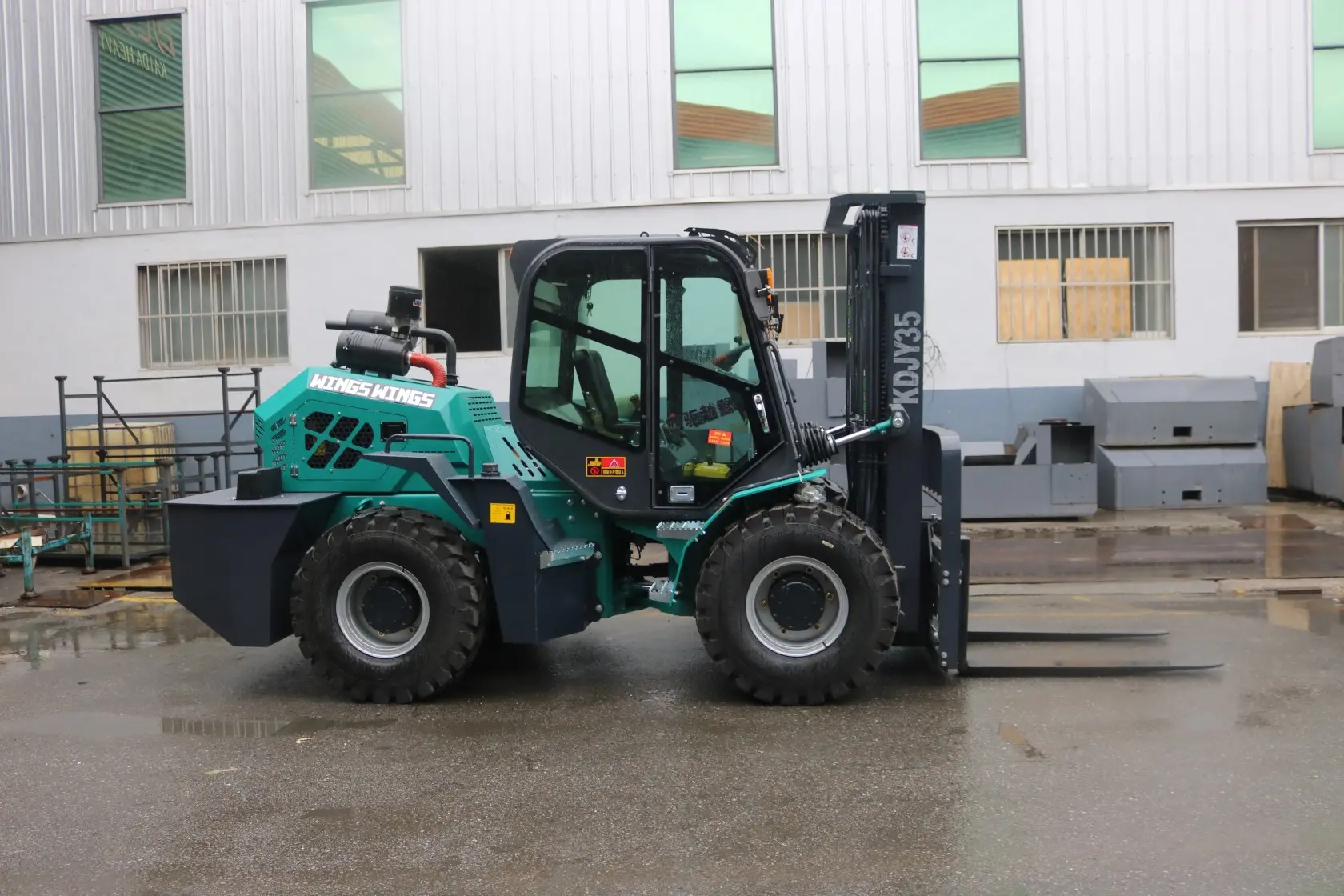

Applications

Forestry: Navigating through wooded areas and rough terrain for material handling.
Agricultural: Moving bales, pallets, and goods across fields and farms.
Ports and Warehouses: Efficient loading and unloading in damp or uneven environments.

Main Specifications

Category		Parameter	Value
Model Info		Model	KDJY35
DIMENSION	Rated Load	kg	3500
	Load Center	mm	500
	Lifting Height	mm	3000
	Overall Dimension (L×W×H)	mm	3600×1850×2200
	Fork Size	mm	1820
	Ground Clearance	mm	300
PERFORMANCE	Max. Unloading Height	mm	4000
	Max. Gradeability	°	≤30
	Drive Mode	-	Four-wheel drive
ENGINE	Model	-	Quanchai 490
ENGINE	Type	-	Turbocharged engine

Superior Advantages

Superior Engineering: Designed with advanced techniques, ensuring high performance and reliability in challenging terrains.

Robust Performance: Powerful engines and efficient 4WD systems allow for climbing steep slopes and navigating rough environments.

User-Centric Design: Intuitive control systems and ergonomic layout reduce operator fatigue and increase productivity.

Elevate your operations with a reliable 4WD forklift engineered to tackle the toughest conditions, providing unmatched performance and versatility.

Frequently Asked Questions

Q1: What is the maximum load capacity of the KDJY35 forklift? A: The KDJY35 articulated off-road forklift has a rated load capacity of 3,500kg.

Q2: What type of engine is used in this machine? A: It is equipped with a Quanchai 490 Turbocharged engine, known for its power and reliability in rough terrains.

Q3: Does the forklift support four-wheel drive? A: Yes, it features a robust 4WD system specifically designed for enhanced traction on uneven and challenging surfaces.

Q4: What is the maximum lifting height? A: The standard lifting height for this model is 3,000mm, with a maximum unloading height of 4,000mm.

Q5: Is the forklift suitable for tight spaces? A: Yes, the articulated frame design allows for excellent maneuverability, making it easier to handle in confined or complex work areas.

Q6: What is the gradeability of the KDJY35? A: This off-road forklift can handle slopes with a gradeability of up to 30 degrees.
