Wings
Wings
| Performance & Dimensions | ||
|---|---|---|
| Performance | ||
| Rated Operating Capacity | 1050 KG | Tipping Load: 2100 KG |
| Operating Weight | 3500 KG | Bucket Capacity: 0.5 m³ |
| Travel Speed | 12 km/h | Pump Flow: 75/115 L/min |
| Tires | 12-16.5NHS | Overall Dim: 3498*1880*2150 mm |
| Dimensions | ||
| Max Extension Height | 4270 mm | Dumping Height: 2450 mm |
| Bucket Hinge Pin Height | 3269 mm | Width With Bucket: 1880 mm |
| Wheelbase | 1115 mm | Ground Clearance: 205 mm |
| Engine (Xinchai 498T) | ||
| Net Power | 55/2500 KW/rpm | Displacement: 3.168 L |
| Type | 4 Cylinder in-line, Water cooled, 4 stroke | |

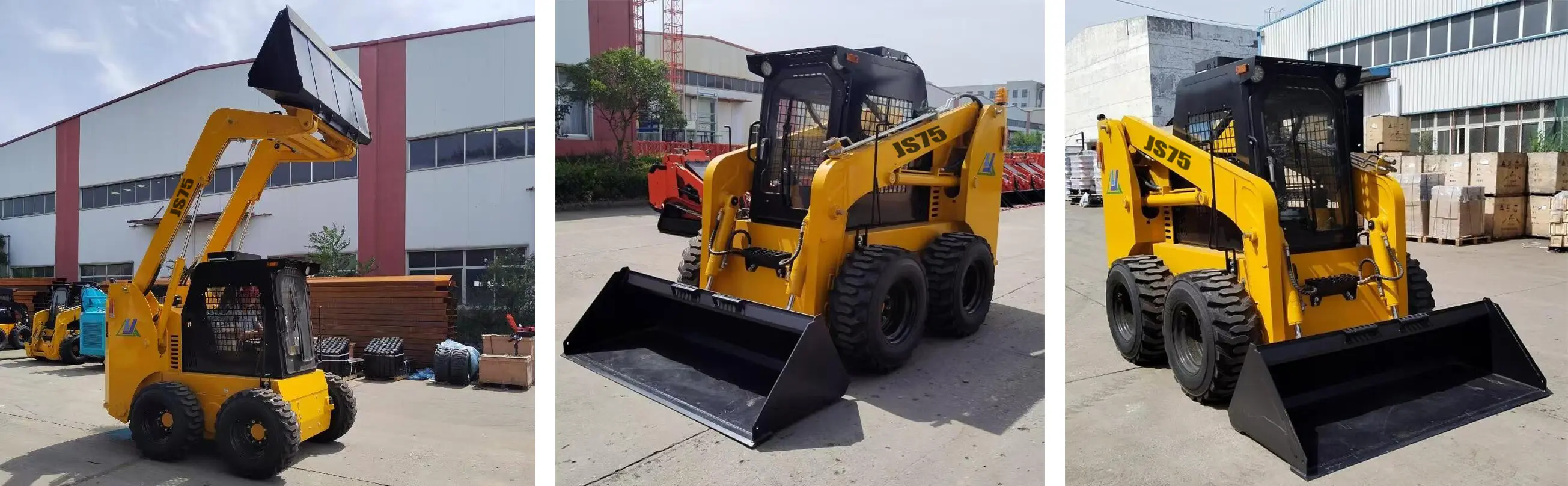

✓ Operational Versatility: Seamlessly transitions between buckets, augers, and forks for farms and construction sites.
✓ Reliable & Sturdy: Engineered with reinforced structures for sustained high-intensity work cycles.
✓ Rapid-Response Assurance: Global 72-hour parts delivery across 30+ countries with technical guidance.
✓ Cost-Smart Ownership: 12-month warranty plus lifetime access to OEM-quality components at factory-direct pricing.

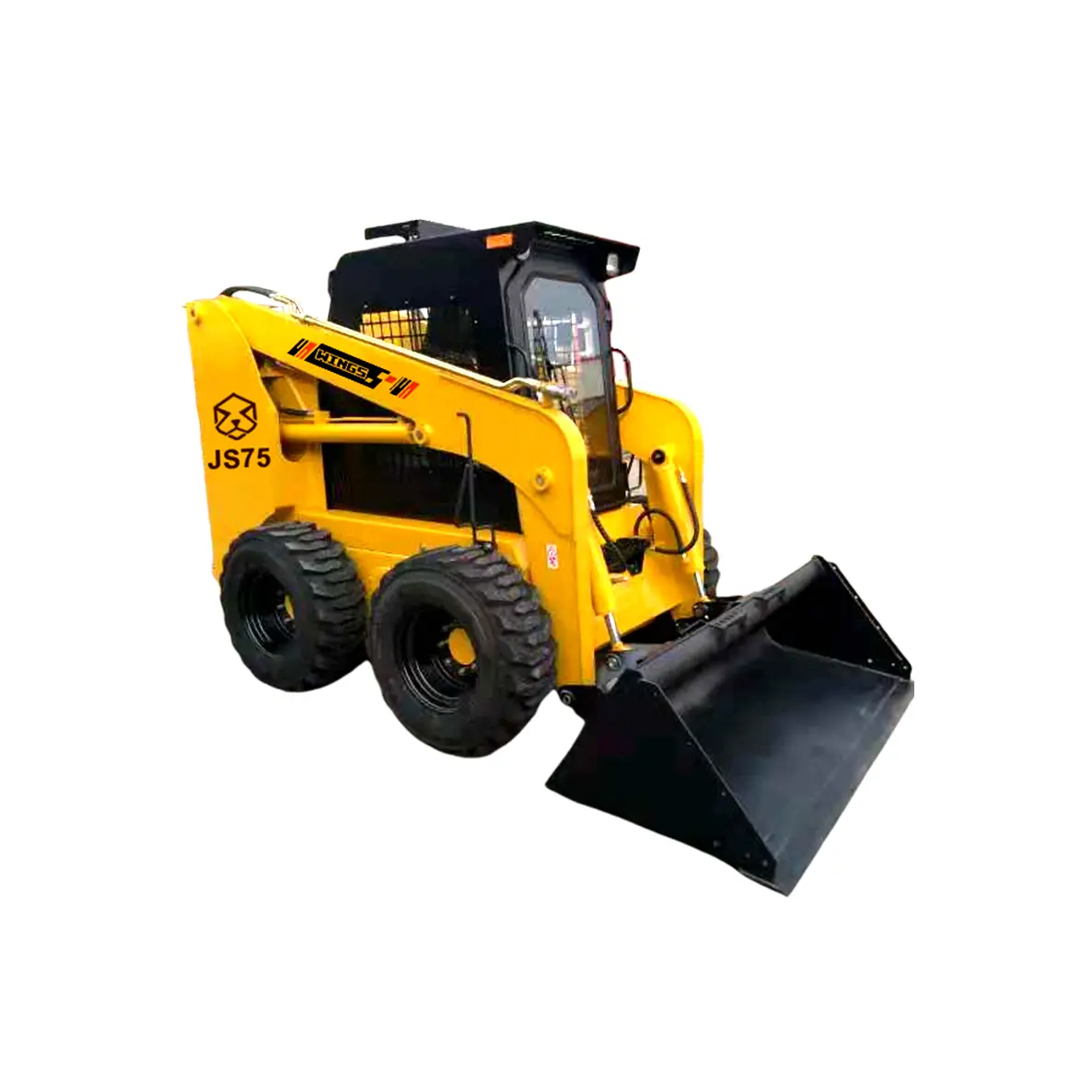

Command agility with the JS75, the compact skid steer loader engineered for multi-attachment precision and space-defying productivity.
